High-Quality Electronic Components – CMC Coils
| Product Attributes | Supply Capacity and Additional Information | Packaging and Delivery |
|
|
|
| Product Attributes | Supply Capacity and Additional Information | Packaging and Delivery |
|
|
|
The new common-mode choke features a ferrite core and a dual-wire winding, delivering outstanding common-mode noise suppression while providing relatively low suppression of differential-mode noise signals. It remains stable under high-speed signaling conditions and exhibits low impedance at operating frequencies, high impedance at interference frequencies, and a compact footprint.
Any high-quality specification of CMC coil inductor — Support Customization
Note: Other dimmension and performance can be customized

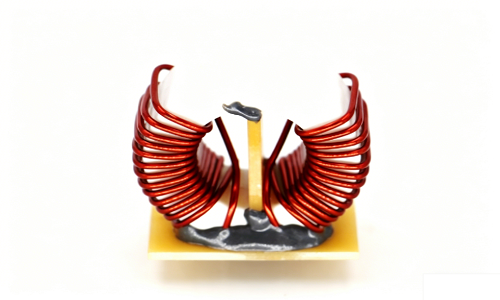

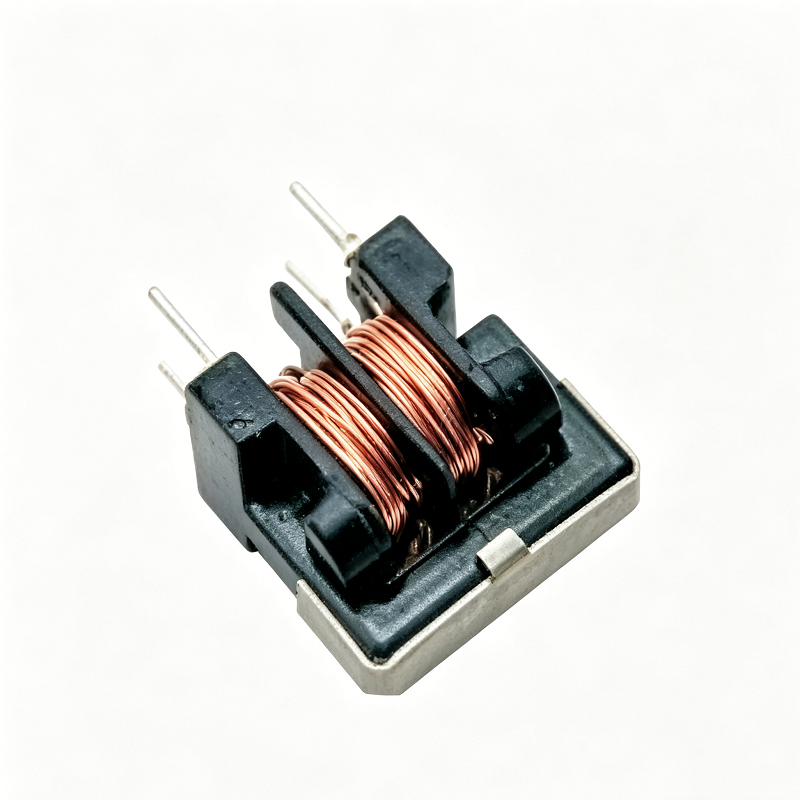

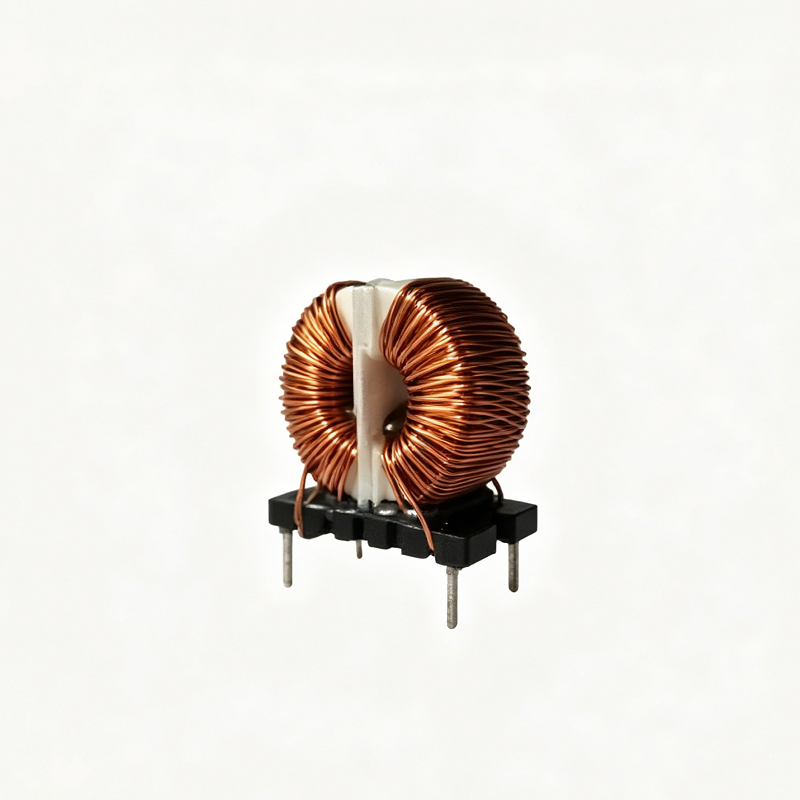

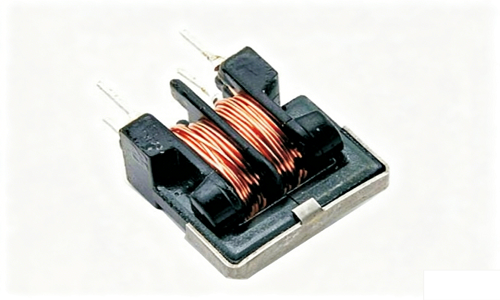

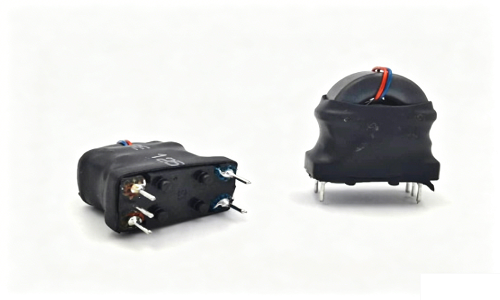

A CMC coil, or common-mode choke, is manufactured using a high-permeability soft magnetic core and a dual-wire parallel winding process. It serves as a core filtering component for suppressing common-mode interference and purifying circuit signals. Featuring excellent impedance matching, strong anti-interference performance, and minimal leakage flux, it can rapidly filter out high-frequency common-mode noise, meeting the electromagnetic compatibility requirements of various circuits. Customized specifications and parameters are available to enhance equipment operational stability.
High-efficiency common-mode filtering: precisely suppresses high-frequency common-mode interference, delivers significant noise reduction, and meets EMC/EMI compliance requirements. Lower core losses: Utilizes high-quality soft magnetic materials, resulting in low hysteresis losses, controllable temperature rise, and stable long-term operation. Exquisite winding process: symmetrical dual-wire winding ensures low leakage inductance, strong insulation, and robust mechanical stability with excellent vibration resistance. Flexible size specifications: compact footprint for easy layout, ideal for compact circuit designs; Highly customizable parameters: inductance value, current rating, and pin configuration can all be customized, ensuring compatibility with automated assembly.
Customized common-mode chokes are used in charging stations, transformers, inductors, sensors, and instrumentation, as well as in computer host displays and communications.

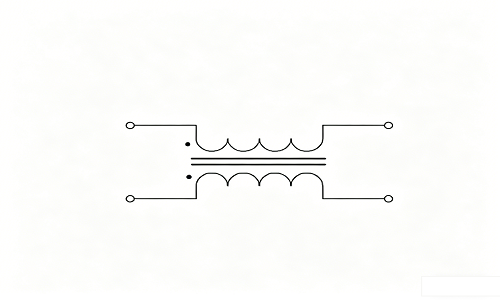

Electrical schematic diagram of a high-quality CMC coil
Frequently Asked Questions
Question: What information do I need to provide during the consultation?
Answer: To provide you with the most accurate response, we recommend that you include relevant product information when you make your inquiry, such as: Model, dimensions, technical specifications, required quantity, etc. 。
Question: How long does it take to produce a sample?
Answer: The preparation time for standard samples is typically 1–3 business days 。
Question: What is the product’s delivery lead time?
Answer: For standard in-stock items, the shipping time is approximately 3–10 days . If you require a custom design, we will, upon confirmation of your requirements, Arrange production as soon as possible. and synchronize the specific production schedule with you.
Q: What is the minimum order quantity (MOQ)?
Answer: We support flexible ordering with no strict minimum order quantity. Specific terms can be negotiated based on your product dimensions and design, and we are committed to meeting a wide range of procurement needs.
Q: What payment methods are supported?
Answer: We accept a variety of international payment methods, including Telegraphic Transfer (T/T), PayPal, Letter of Credit (L/C), Documents against Acceptance (D/A), and Documents against Payment (D/P) Different regions may have different applicable procedures; please feel free to inquire for further information.
Question: If you have any other questions, how should you contact us?
Answer: You can Email, phone call, or online message Please contact us at any time, and we will respond to you as soon as possible.
Question: Select Good friend What is the reason?
Answer: (1) Our products enjoy a strong reputation in both domestic and international markets, Quality widely recognized ；
(2) Possess More than 8 years With extensive export experience, we have a deep understanding of international customer needs and provide professional services.
(3) Commitment On-time delivery , ensuring an efficient and reliable supply chain.
